CUP LOCK SYSTEM

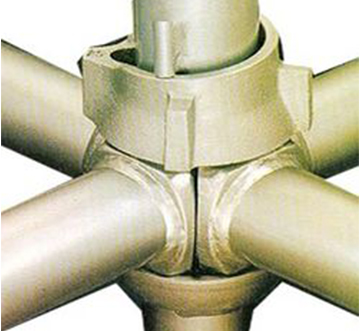

Cup lock System is a scaffold system that uses the “Cup” and “Blade” to lock the perpendicular or standard and parallel together and lock the blades by twisting the cup. This system Scaffold uses no nut, bolt, or wedge. Cup lock’s Scaffolding System node-point is radical and makes it faster and easier than any other scaffolding system. Cup lock Scaffolding System combined structure is rational, simple production method, easy operation, a wide range of use, compared with traditional scaffolding; Cup lock Scaffolding System has the following remarkable features:
- Fast and easy to erect with only four component fastenings.
- Manufactured using 3.2mm thickness high-grade steel Cup lock Scaffolding System is 20% lighter than standard 4mm thickness scaffolding tube.
We make sure to offer a wide range of supreme quality Cup lock Verticals/Standards to the customers. These principal load-bearing members have seats on top and bottom cups. Bottom cups are welded at a 500/1000 mm distance position. Besides, top cups can be moved and retained by a fixed stop. Verticals are made of 40 NB medium/heavy class pipes and drilled to fix spigot joints.
